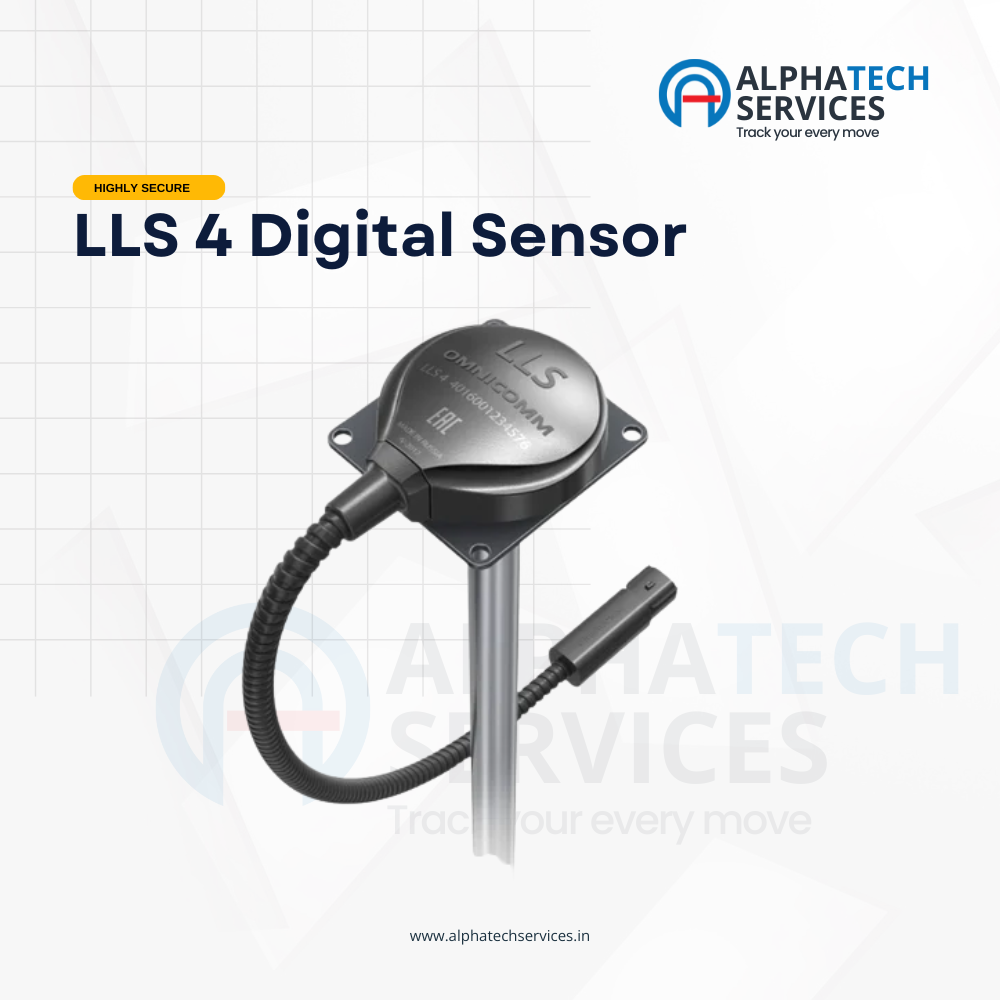

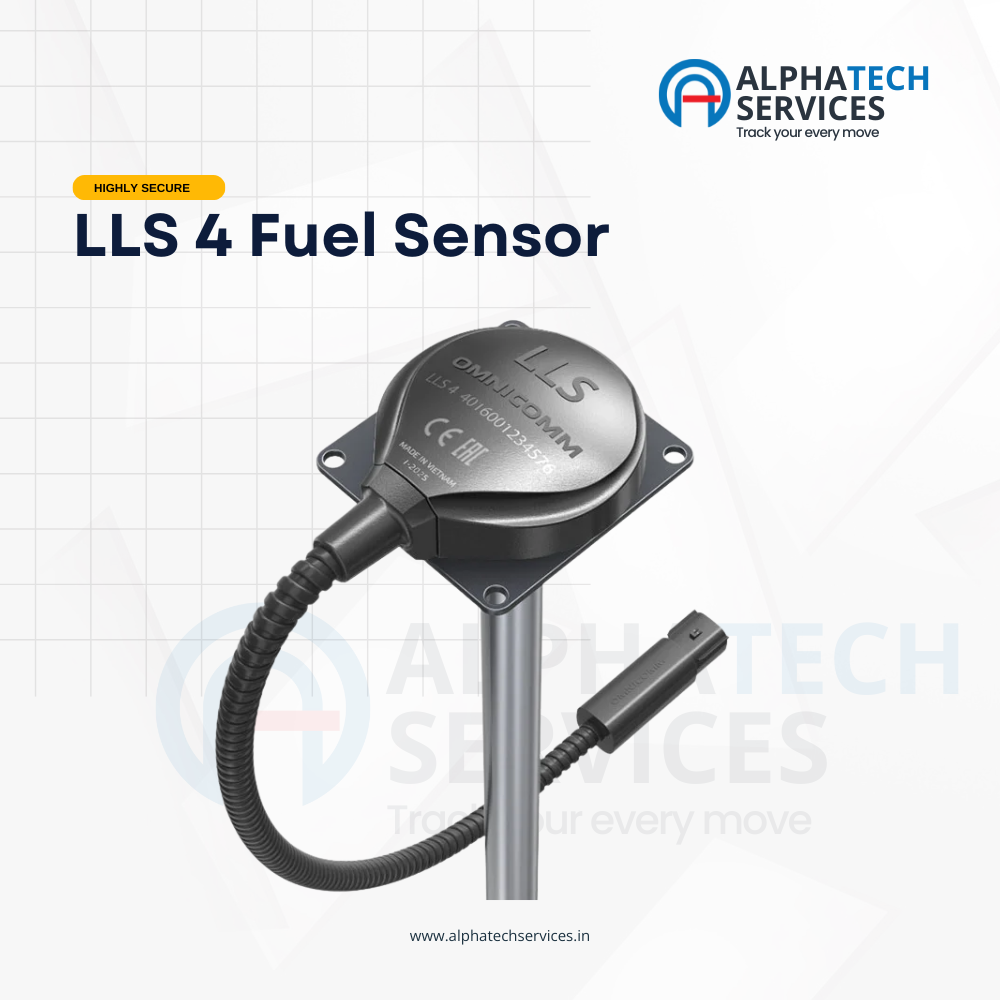

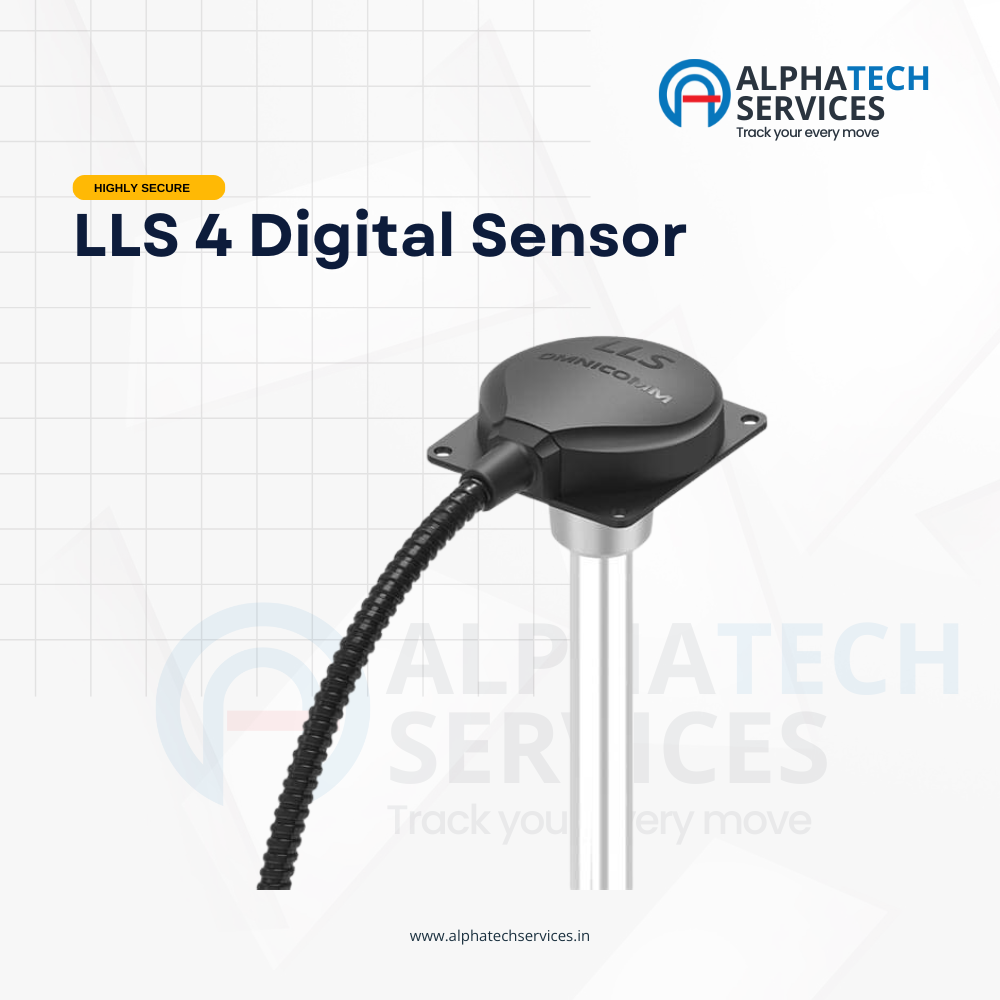

The Omnicomm LLS 4 Digital Fuel Level Sensor is a high-precision capacitive fuel sensor designed for professional fleet fuel monitoring and telematics systems. Using a digital RS-485 interface, the LLS 4 delivers stable, noise-free fuel level data with up to 99% accuracy. It is ideal for trucks, buses, generators, construction equipment, and industrial fuel tanks where fuel control, theft prevention, and consumption analysis are critical.
| Parameter | Specification |
|---|---|
| Sensor Type | Capacitive fuel level sensor |
| Measurement Accuracy | Up to 99% (≤1% error) |
| Measurement Resolution | High-resolution digital |
| Fuel Types Supported | Diesel, Petrol, Kerosene |
| Calibration | Multi-point tank calibration |
| Parameter | Specification |
|---|---|
| Output Interface | RS-485 (Digital) |
| Protocol | Omnicomm LLS protocol |
| Supported Baud Rates | 9600 – 115200 bps |
| Data Output | Fuel level (volume / percentage) |
| Cable Length | Long-distance, noise-resistant |
| Parameter | Specification |
|---|---|
| Operating Voltage | 9 – 36 V DC |
| Power Consumption | Low |
| Protection | Reverse polarity & surge protection |
| Parameter | Specification |
|---|---|
| Operating Temperature | −40°C to +85°C |
| Ingress Protection | IP68 |
| Housing Material | Anodized aluminum |
| Installation | Tank mounting, cut-to-length probe |
| Resistance | Fuel, vibration & corrosion resistant |
Commercial fleet fuel monitoring
Truck & bus fuel consumption analysis
Generator fuel level monitoring
Construction & mining equipment
Industrial fuel tanks
Fuel theft & leakage detection
Government & enterprise fleets
Yes, it supports 12V–24V vehicles including bikes, cars, trucks, buses, and commercial fleets.
Yes, engine immobilization works with an additional relay.
The device provides < 5 meters accuracy with GPS + GLONASS technology.
Yes, wiring to ignition (ACC), battery, and relay (optional) should be done by a technician.
Absolutely— connectivity ensures strong coverage in urban and rural areas.
Yes, fleet owners can manage unlimited vehicles on the platform.
