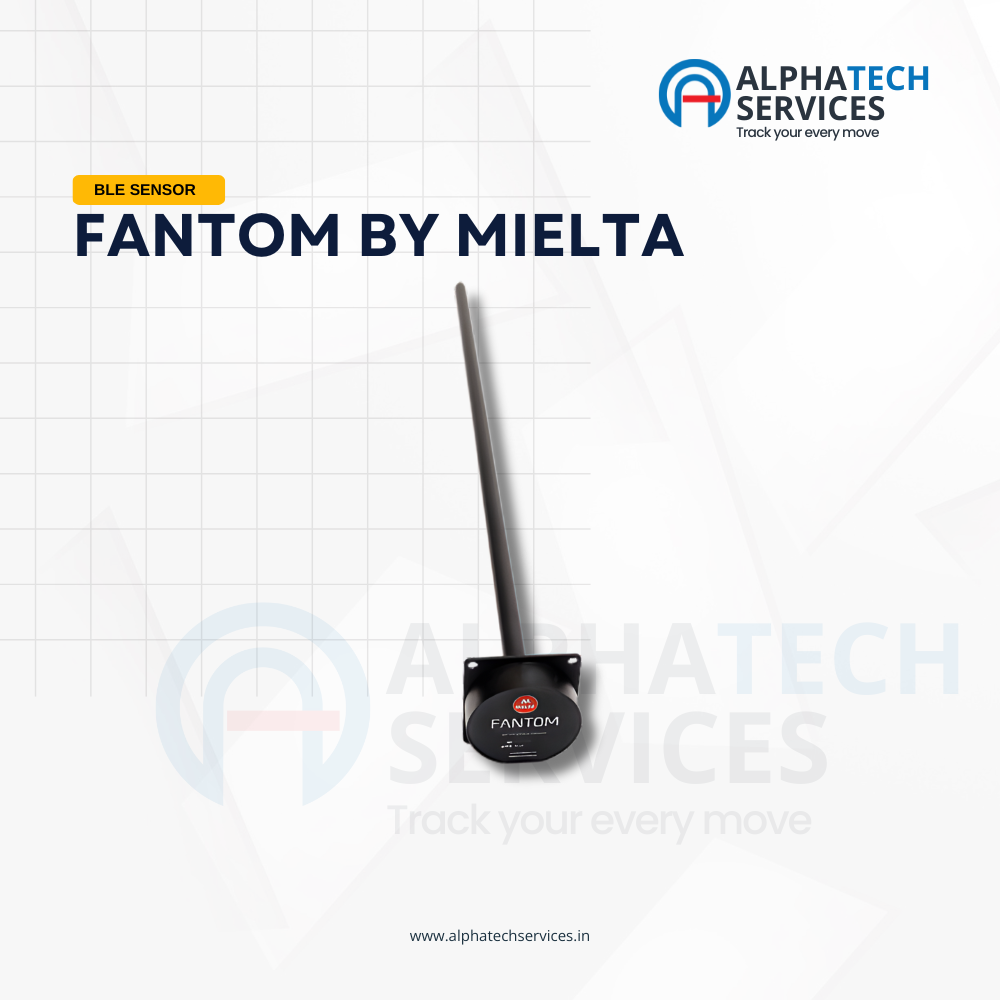

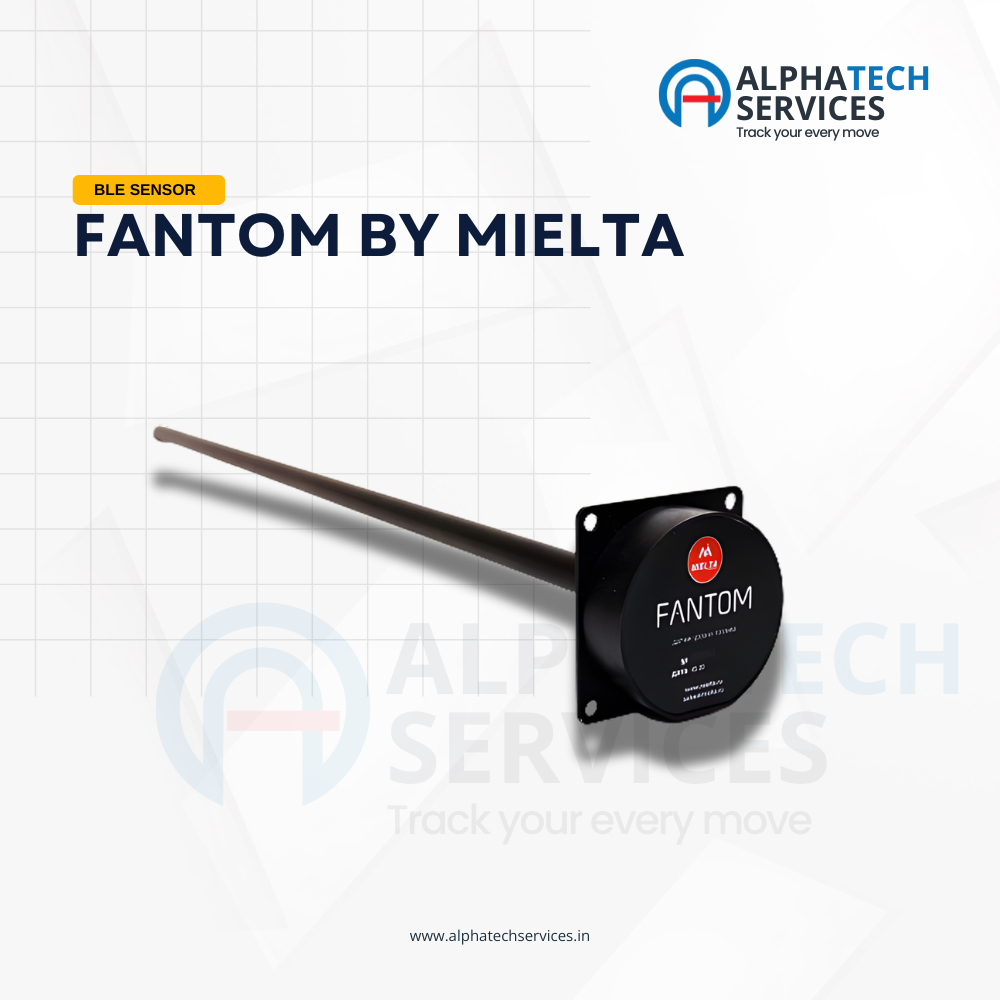

The Mielta Fantom BLE Fuel Level Sensor is a Bluetooth Low Energy (BLE) based high-accuracy fuel monitoring sensor offering 95–99% fuel level measurement accuracy. It wirelessly transmits fuel data to a BLE-enabled GPS tracking device, eliminating complex wiring while ensuring stable, real-time fuel monitoring. Ideal for fleet vehicles, generators, buses, and heavy machinery, this BLE fuel sensor helps prevent fuel theft and improve fuel management efficiency.
| Parameter | Specification |
|---|---|
| Sensor Type | Capacitive Fuel Level Sensor |
| Measurement Accuracy | 95% – 99% |
| Fuel Types Supported | Diesel / Petrol (calibration dependent) |
| Calibration Method | Multi-point tank calibration supported |
| Parameter | Specification |
|---|---|
| Wireless Technology | Bluetooth Low Energy (BLE) |
| BLE Version | BLE 4.0 / BLE 4.2 (model dependent) |
| Transmission Range | Up to ~10–30 meters (vehicle installation dependent) |
| Broadcast Mode | Periodic BLE advertisement packets |
| Data Output | Fuel level percentage / fuel volume (configurable) |
| Parameter | Specification |
|---|---|
| Operating Voltage | 9 – 36 V DC |
| Power Consumption | Ultra-low (BLE optimized) |
| Power Source | Vehicle power supply |
| Electrical Isolation | Yes (noise-resistant design) |
| Parameter | Specification |
|---|---|
| Operating Temperature | −20°C to +85°C |
| Ingress Protection | IP-rated (model dependent) |
| Body Material | Fuel-resistant, corrosion-protected enclosure |
| Parameter | Specification |
|---|---|
| Tracker Compatibility | BLE-enabled GPS tracking devices |
| Platform Support | Web & mobile fuel reports (via GPS tracker integration) |
Sensor measures fuel level inside the tank
Sensor sends fuel data via BLE
BLE-enabled GPS tracker receives the data
Tracker uploads fuel data to tracking software
User sees fuel level, theft alerts, and reports
Fleet fuel monitoring with minimal wiring
Generator fuel level monitoring
Fuel theft detection
Long-haul transport vehicles
Buses & heavy vehicles
Modern BLE-based telematics systems
The sensor delivers 95–99% accuracy, depending on installation, tank shape, and calibration.
Yes, it can interface with GPS trackers or telematics systems that accept analog or digital fuel input.
Yes, it works with cars, trucks, buses, generators, and industrial equipment.
Yes — when connected to a compatible tracking platform, sudden drops in fuel level can trigger fuel theft alerts.
Field calibration may be required for precise reporting based on tank geometry and level curve.
