| Parameter | Specification |
|---|---|
| Sensor Type | Capacitive fuel level sensor |
| Measurement Accuracy | 95% – 99% |
| Fuel Types Supported | Diesel / Petrol |
| Calibration | Multi-point tank calibration |
| Parameter | Specification |
|---|---|
| Wireless Technology | Bluetooth Low Energy (BLE) |
| BLE Version | BLE 4.0 / 4.2 |
| Transmission Range | Up to 10–30 meters (vehicle dependent) |
| Data Broadcast | BLE advertisement packets |
| Data Output | Fuel level % / volume |
| Parameter | Specification |
|---|---|
| Operating Voltage | 9 – 36 V DC |
| Power Consumption | Ultra-low |
| Power Source | Vehicle power supply |
| Parameter | Specification |
|---|---|
| Operating Temperature | −20°C to +85°C |
| Enclosure | Fuel-resistant housing |
| Protection | IP-rated (model dependent) |
Fleet fuel monitoring
Fuel theft detection
Generator fuel tracking
Bus & truck fuel analytics
BLE-based telematics systems
Fuel level sensor working

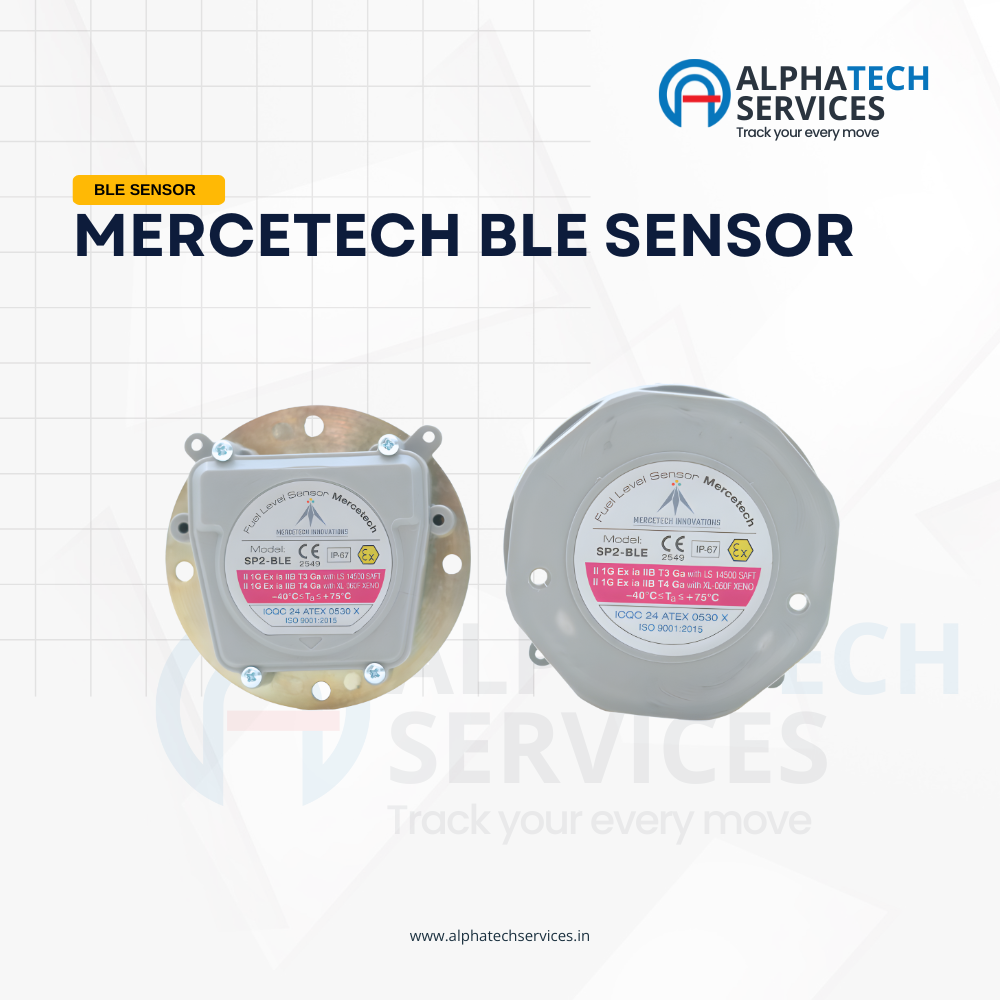

The Mercetech BLE Fuel Level Sensor is a Bluetooth Low Energy (BLE) based fuel monitoring sensor that wirelessly transmits fuel level data to BLE-enabled GPS tracking devices with 95–99% accuracy.
The sensor uses Bluetooth Low Energy (BLE) to broadcast fuel level data at defined intervals. A BLE-enabled GPS tracker receives this data and uploads it to the tracking platform.
It is compatible with cars, trucks, buses, generators, construction equipment, and any vehicle using a BLE-supported GPS tracker.
No. The BLE fuel level sensor does not require analog or digital wiring between the sensor and the tracker, making installation faster and cleaner.
The sensor provides 95–99% fuel measurement accuracy, depending on tank shape and calibration quality.
Yes. When integrated with a GPS tracking platform, sudden fuel drops trigger fuel theft or leakage alerts.
Yes. Multi-point tank calibration is recommended to achieve maximum accuracy.
Any BLE-enabled GPS tracking device that supports external BLE sensors can integrate with this fuel sensor.
