Track your every move
| Type | Wired |
| Brand | Atlanta |
| Material | Plastic |
| Model Name/Number | E 101 |
| Battery | 250mAh Li-Po 3.7V |
| GPRS Class | Multislot Class,12 Coding Scheme CS 1,2,3,4 |
| GNSS | GPS,GLONASS,QZSS,GAGAN |
| Band | 2G (850/900/1800/1900MHz) |
| Protocol | TCP/ IP/ UDP/ FTP/ HTTP |

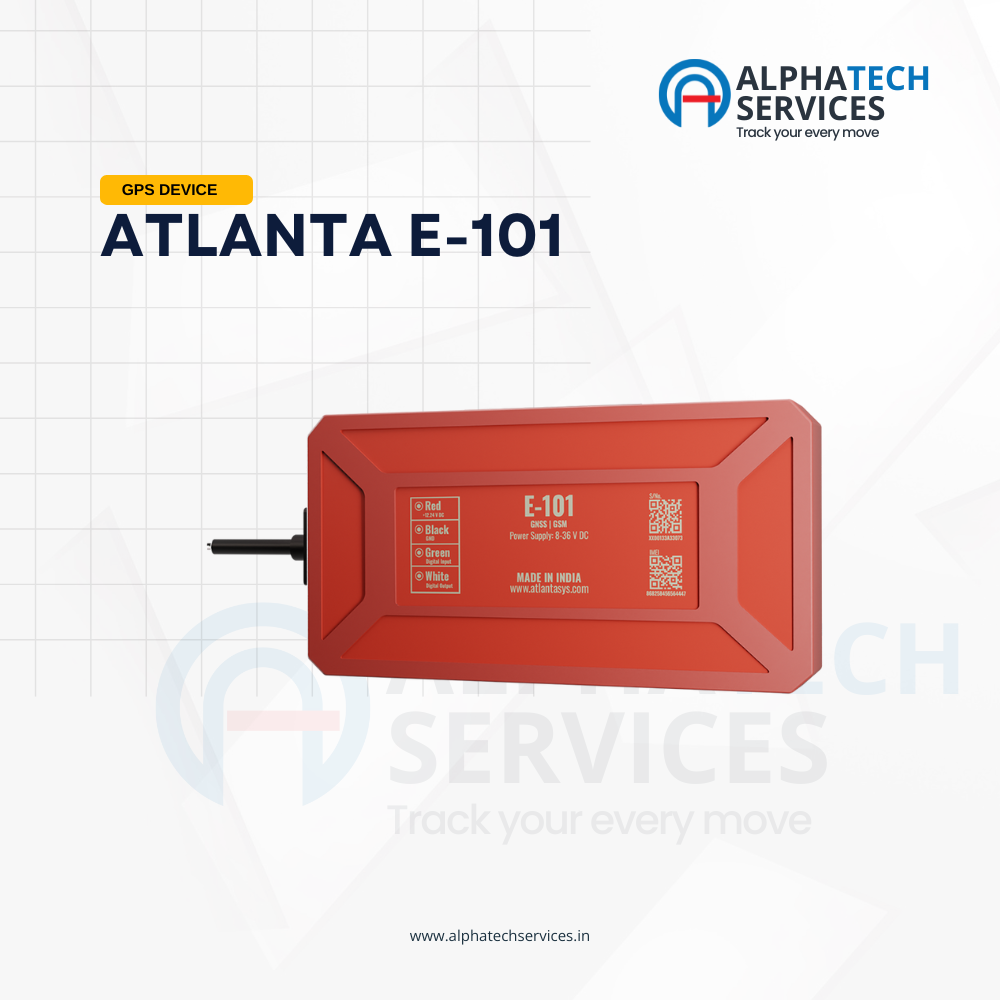

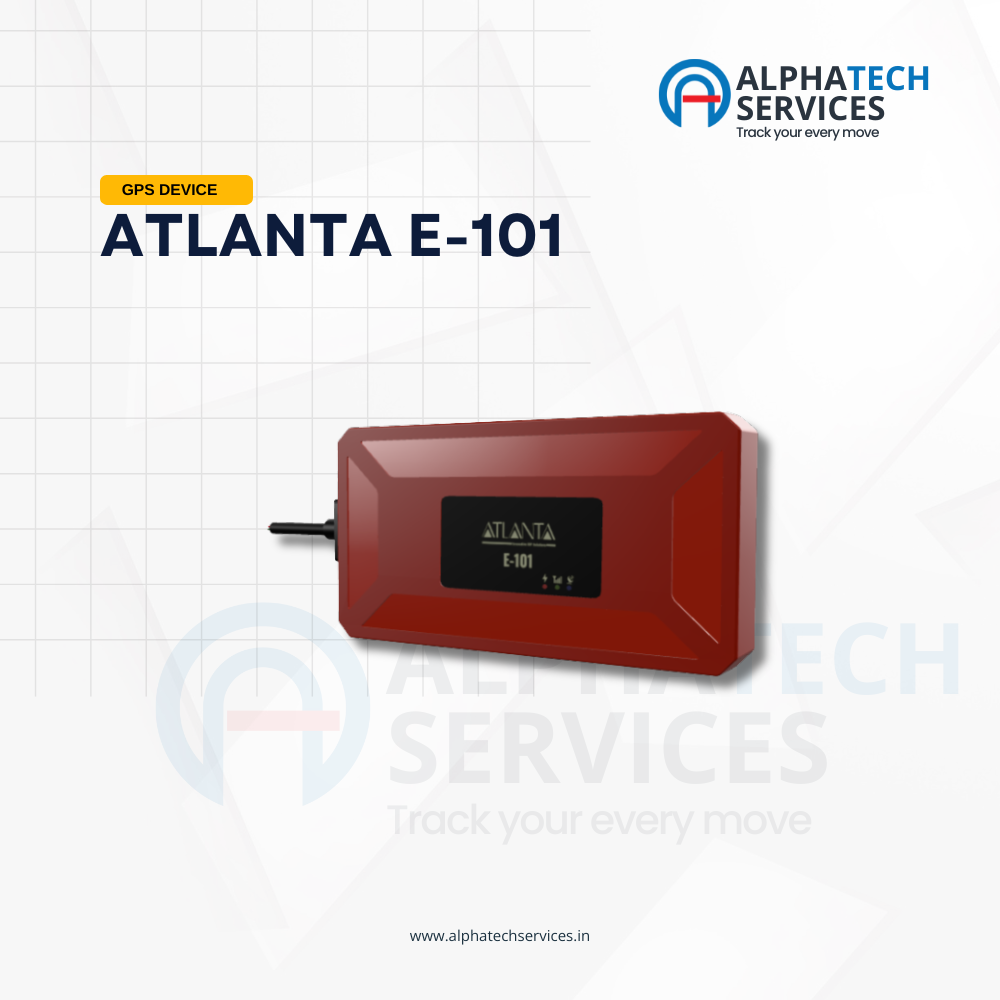

E-101 is a compact vehicle tracker designed for all types of vehicles like Personal Cars, Taxis & Commercial Transports. One Digital Input can be used for Ignition, door, or alarm button status monitoring & one Digital Output can help in achieving Vehicle remote immobilization.
1. Internal Battery Backup.
2.Precise GPS Accuracy.
3. Ignition Sense and Remote Immobilization.
4.Remote Data logging.
5.Voltage Surge Protection.
6.FOTA Upgradation.
7. In-Built Large Memory,
8.High Accuracy Motion Sensor,
Note: The price for the above listing is only for Hardware.
| Internal Battery Backup |
| Ignition Sense and Remote Immobilization |
| Voltage Surge Protection |
| In-Built Large Memory |
| Precise GPS Accuracy |
| Remote Data logging |
| FOTA Upgradation |
| High Accuracy Motion Sensor |
| I/O | Digital Input: 1, Digital Output: 1 |
| GNSS & GPS Antenna | Internal High Gain Antenna |
| Indicators | 3 LED’s (Charging, GSM, GPS) |
| SIM | Micro SIM |
| Voltage Range | 8-96V DC |
| Battery | 250mAh Li-Po 3.7V |
| GNSS | GPS, GLONASS, QZSS, GAGAN |
| Channels | 22 Tracking / 66 Acquisition Channel |
| Sensitivity | -166dBm |
| Acceleration Accuracy | 0.1m/s2 |
| Band | 2G (850/900/1800/1900MHz) |
| RF Power | Class 4 (2W@ 850/900MHz), Class 1 (1W@1800/1900MHz) |
| GPRS | GPRS : Multislot Class, 12 Coding Scheme CS 1, 2, 3, 4 |
| Protocol | TCP/ IP/ UDP/ FTP/ HTTP |
