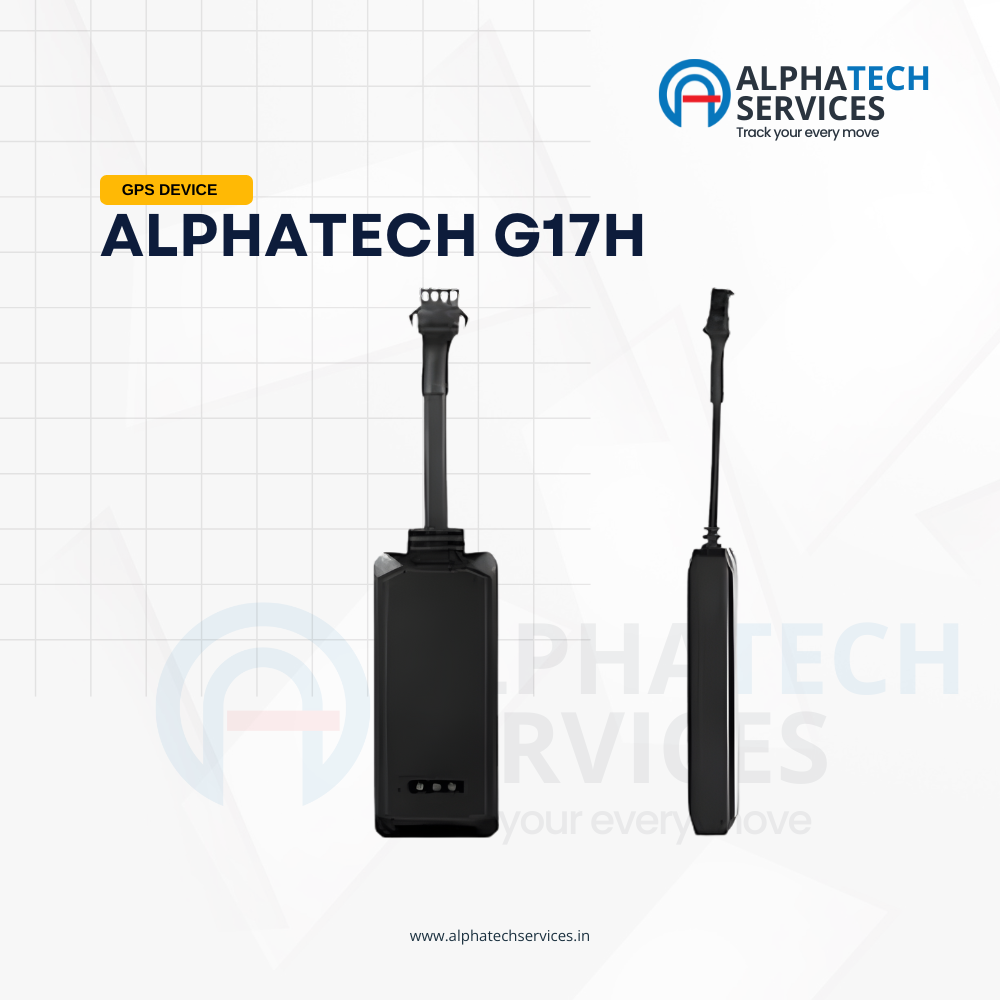

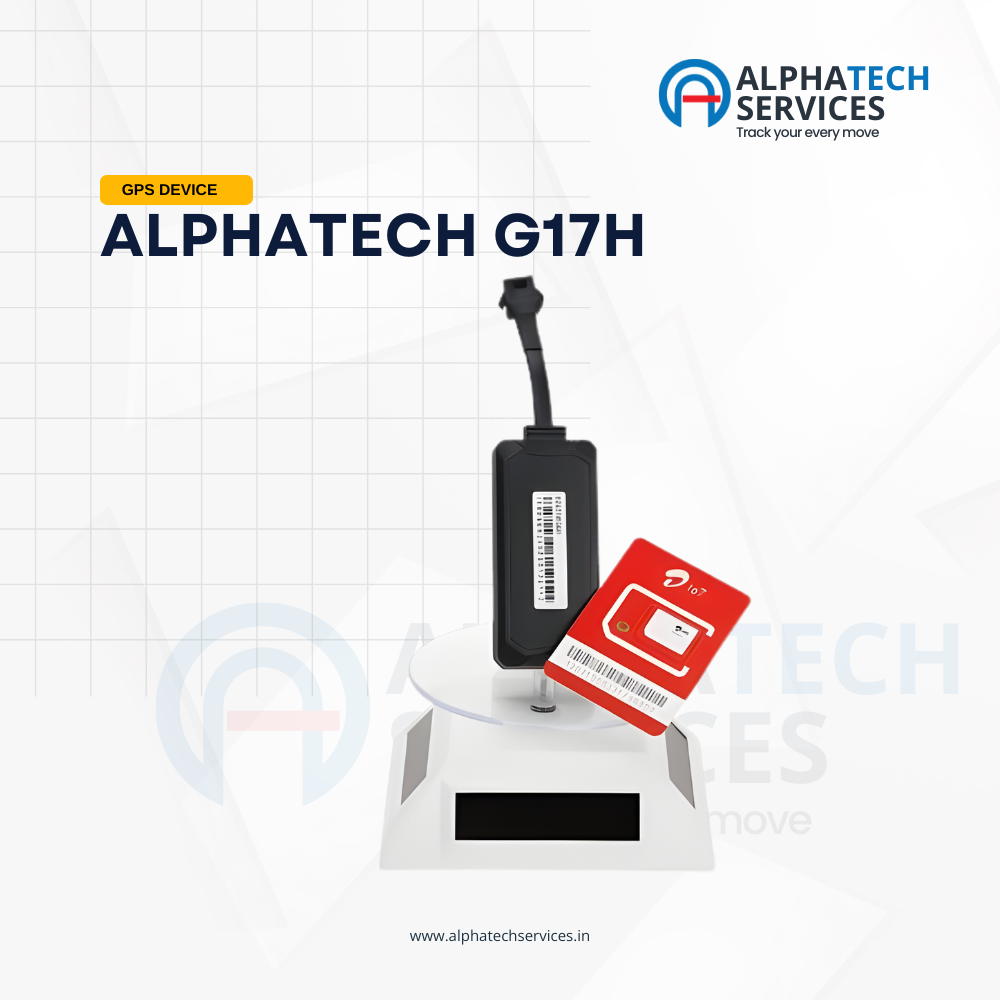

The Alphatech G17H GPS Device is a lightweight, compact, and cost-effective 4-wire GPS tracking device designed for reliable real-time vehicle tracking. It supports live location monitoring, ignition (ACC) detection, geo-fencing, and basic vehicle security features, making it ideal for cars, bikes, delivery vehicles, and small fleets. With low power consumption and simple wired installation, the G17H is a perfect entry-level GPS tracker for personal and commercial use.
The Alphatech G17H GPS Device is engineered for users who need a budget-friendly yet reliable GPS tracking solution. This 4-wire GPS device connects directly to the vehicle’s power and ignition system, ensuring continuous tracking without frequent maintenance.
Its compact and lightweight design allows hidden installation, improving theft protection. The device transmits real-time GPS data over GSM/GPRS networks to a tracking platform, enabling users to monitor vehicle location, trip history, speed behavior, and ignition status via web or mobile applications.
The G17H GPS tracker is widely used in personal vehicles, two-wheelers, logistics vehicles, sales fleets, and rental cars, offering dependable tracking performance at a highly affordable cost.
| 🔧 | Feature |
|---|---|
| 📡 | Real-Time GPS Tracking |
| 🔌 | 4-Wire Wired Installation (Power, Ground, ACC, Output) |
| 🚗 | Ignition (ACC) Detection |
| 🗺️ | Geo-Fencing Alerts |
| ⚠️ | Over-Speed Notifications |
| 📍 | Route History & Playback |
| 🔋 | Low Power Consumption |
| 🧳 | Lightweight & Compact Design |
| Parameter | Specification |
|---|---|
| Positioning System | GPS |
| Location Accuracy | ≤ 5 meters |
| Tracking Mode | Real-time |
| Update Interval | Configurable |
| Parameter | Specification |
|---|---|
| Network Type | GSM / GPRS |
| Frequency Bands | 850 / 900 / 1800 / 1900 MHz |
| Data Protocols | TCP / UDP |
| SIM Type | Micro SIM |
| Parameter | Specification |
|---|---|
| Input Voltage | 9 – 36 V DC |
| Operating Current | Low power design |
| Backup Battery | Internal small battery (power-cut alert) |
| Protection | Reverse polarity protection |
| Parameter | Specification |
|---|---|
| Installation Type | Wired (4-wire) |
| ACC Input | Supported |
| Relay Output | Optional |
| Indicators | Power, GPS, GSM LEDs |
| Parameter | Specification |
|---|---|
| Form Factor | Compact & lightweight |
| Operating Temperature | −20°C to +70°C |
| Mounting | Hidden internal installation |
Personal car & bike tracking
Cost-effective fleet tracking
Delivery & courier vehicles
Rental & shared vehicles
Sales team vehicle monitoring
Entry-level GPS deployments
It is a 4-wire lightweight GPS tracking device designed for real-time vehicle tracking at a cost-effective price.
It supports cars, bikes, delivery vehicles, and light commercial vehicles.
Yes, it is ideal for small fleets and budget-friendly tracking requirements.
Yes, wiring to ignition (ACC), battery, and relay (optional) should be done by a technician.
Yes, tracking data is accessible via web and mobile GPS tracking platforms.
Yes, wired installation by a technician is recommended for best performance.
