The Mielta Katana Fuel Level Sensor is designed to provide precise and dependable monitoring of fuel tank levels in commercial vehicles, generators, storage tanks, and industrial applications. Built with a vandal-resistant aluminium body and IP68 protection, this wired sensor withstands harsh environments and long-term operation. Its RS-485 digital interface supports the LLS protocol, allowing communication with GPS tracking systems and telematics platforms for seamless data integration.
The sensor features software-enhanced data processing, enabling measurement error not exceeding 1%, and supports flexible configuration, firmware updates, and calibration via PC configurators. With a unified measuring length of 700 mm, it can be used across various vehicle classes and fuel storage scenarios.
| Icon | Feature |
|---|---|
| 📊 | High Accuracy (≤1%) – Extremely precise fuel level measurements |
| 🔌 | RS-485 Digital Interface – Standard industrial communication |
| 🧠 | Advanced Self-Diagnostics – Detects measurement anomalies |
| 🔄 | Configurable Output – Flexible frequency settings |
| 🛡️ | IP68 Rugged Housing – Dust & waterproof protection |
| 🔧 | Calibration Support – PC configurator & calibration table storage |
| ⚙️ | Wide Application – Vehicles, tanks, industrial storage |
| 📍 | 700,1000,1500 mm Measuring Length – Fits diverse tank depths |
Fuel level sensor overview – how fuel sensors work
RS-485 interface standard (industrial communication)
| Parameter | Specification |
|---|---|
| Power Supply | 8 – 55 V DC |
| Average Power Consumption | 0.5 W |
| Measurement Period | 1 second |
| Averaging Interval | 1 – 60 seconds |
| Measurement Accuracy | ≤1 % relative error |
| Measuring Part Length | 700,1000,1500 mm |
| Frequency Output Range | 30 – 2048 Hz |
| Frequency Output Resolution | 1 Hz |
| Frequency Output Load | 2 kΩ |
| Frequency Output Current Limit | 100 mA |
| Interface | RS-485 digital (LLS protocol) |
| RS-485 Baud Rates | 9600 / 19200 / 38400 / 57600 / 115200 (8N1) |
| Operating Temperature | −40 °C to +80 °C |
| Enclosure Protection | IP68 (water & dust resistant) |
| Housing Material | Dielectric-coated stainless steel & aluminium |

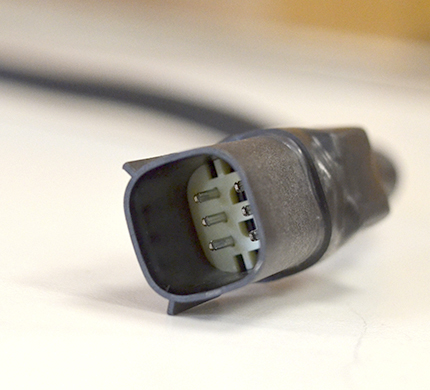

| Connector Type | Universal industry-standard connector |
Commercial fleet fuel monitoring
Fuel management for buses & trucks
Industrial fuel storage level detection
Generator & construction equipment monitoring
Integration with GPS telematics systems
Fleet optimization & fuel cost control
Theft or leakage detection with telematics alerts
It delivers measurement error of no more than 1%, making it highly precise for telematics and control systems.
Via an RS-485 digital interface using the LLS protocol, suitable for GPS trackers and telematics controllers.
It is compatible with diesel, gasoline (petrol), and kerosene.
Yes — it has IP68 protection and a rugged metal housing.
Yes — calibration tables can be stored and managed via the PC configuration tool.
